Plasson Metric Tapping Saddle | Galvanised Bolts | 50mm160mm PE Pipe

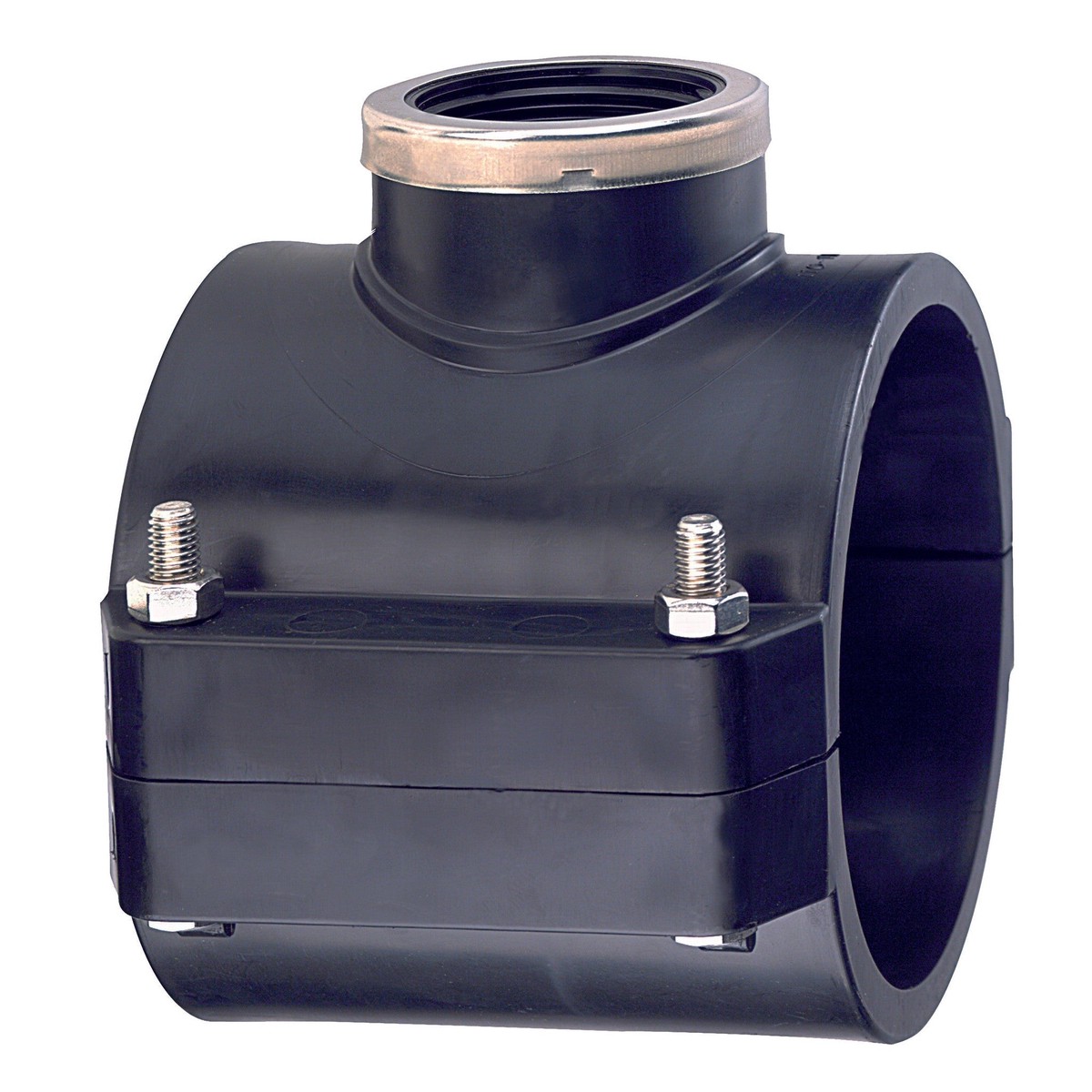

The Plasson Tapping Saddle – Metric Gal is a bolted saddle fitting that adds a BSP female threaded outlet to a metric PE pipeline. It could suit situations where a new branch connection is needed on an existing water main without cutting or replacing pipe.

The saddle clamps to the pipe using galvanised bolts and includes a stainless steel reinforcing ring and NBR seal as standard. Pressure rating is PN 12.5 for pipe sizes up to 63mm and PN 10 for sizes from 75mm to 160mm. It is available across a range of pipe and outlet size combinations to suit different systems.

Features

• Adds a BSP female threaded branch outlet to metric PE pipe
• Stainless steel reinforcing ring and NBR seal fitted as standard
• Secured with galvanised bolts
• Rated to PN 12.5 for pipe sizes 50mm63mm, and PN 10 for 75mm160mm
• Suitable for water use
• Available in pipe sizes 50mm, 63mm, 75mm, 110mm, and 160mm with outlet sizes from 1″ to 2″ BSP

A practical option for tapping into a metric poly water main to add a valve, riser, or branch line on farm.
