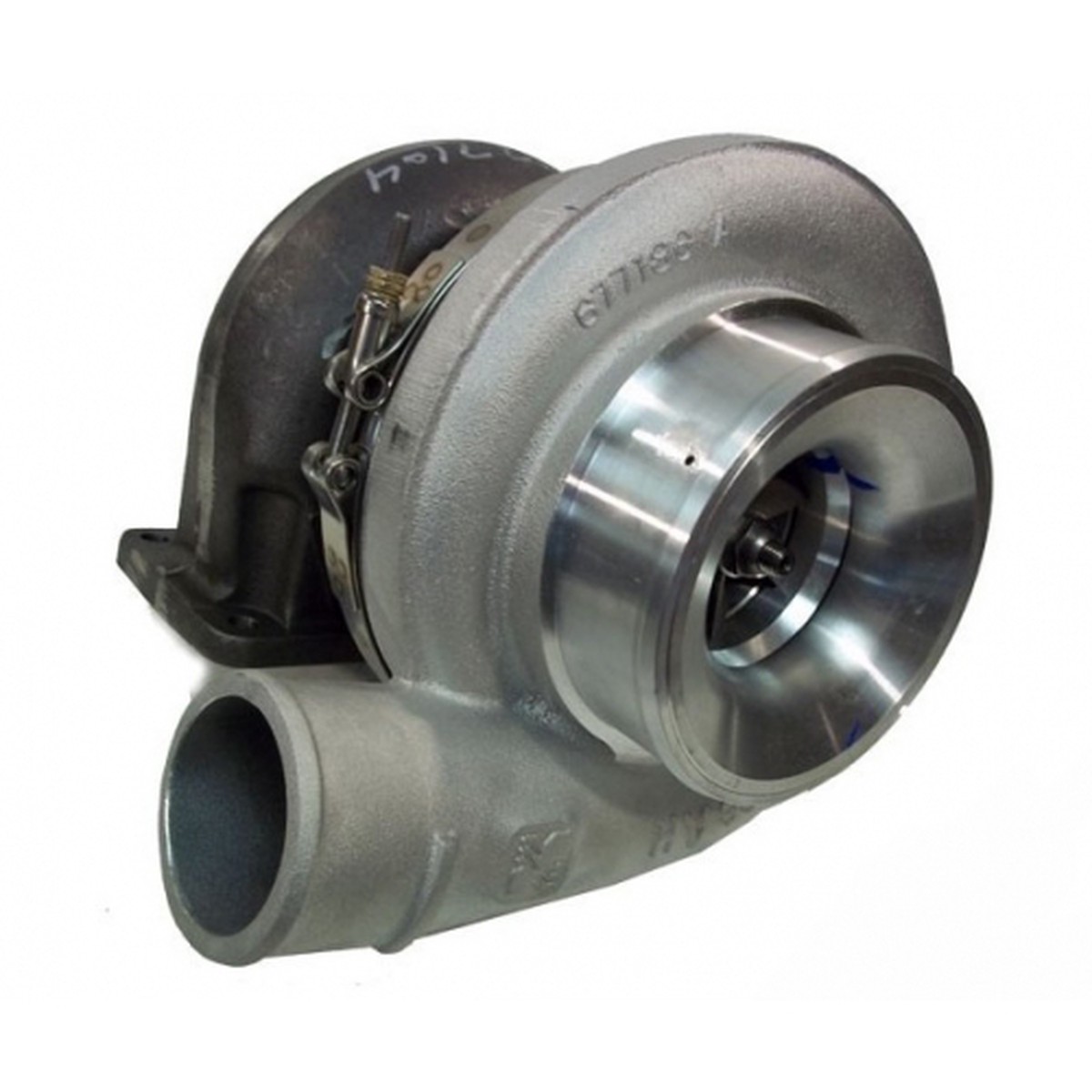

BorgWarner Airwerks S400SX3-76, S476, S400-76, or S376 with 1.10 A/R Twin Scroll Turbine Housing and “Race Cover”.
This new S400SX3 turbocharger from BorgWarner utilizes the new “J-Type” turbine wheel which outflows and out-responds the previous 87/80mm wheel used.
Rated at 500 to 1150 HP
High-flow S400 model, with compressor flow over 115 lb/min.
Wheel Dimensions:
Compressor:
76 mm inducer, 105mm exducer, with exclusive Extended Tip Technology.
Turbine: ”
J-Type
”
87 inducer, 81mm exducer. Cast in Inconel 713 for high-temperature operation.
Housings:
Compressor:
RACE COVER
.66 A/R, with 5.0″ hose-type inlet, and 3″ Hose type discharge
Turbine:
T4
1.10 A/R, with ‘divided’ volute, featuring ‘T04-style’ turbine inlet flange (3.25″x2.75″), and quick-release v-band discharge flange. Cast in ductile iron.
