Product Information:
Reverse Spare Tire Mount for Mercedes G-class W463
The Mercedes OEM part has the wheel facing inward, toward the tailgate. The Reverse Tire Mount allows you to remove the spare tire cover and clamp when using larger tires, while turning the wheel around so the face is visible.
Features:
The new mount was designed to use factory wheel bolts!
Fully welded and gusseted design is stronger than stock, but still lightweight.
Bolts on in a matter of minutes.
The short door spacers are for 2002 and newer models with 18 wheels. The long spacers are for pre-2000 models and any wheel 19 or larger.
Fits 1990-2018 models. Does not fit 2019-on G-class W463A
click here for the 2019-on mount
.
Fits earlier models that have the 3-bolt mount.
Two sets of door spacers and bolts are included to fit all Mercedes G-class wheels. The short and long spacer kits will work for virtually any wheel offset and tire width.
G-class models with 19+ wheels have an 18 factory spare. That will use the short spacers, unless you have purchased a matching spare.
Now works with Hutchinson wheels! The tube has been left open with a ring installed inside so a center cap installs in the mount. When a Hutchinson wheel is bolted on it looks like the center cap is installed in the wheel. With standard wheels, the mount gets covered and the center cap installs in the wheel as usual.
Specifications:
Includes 5 OEM wheel bolts.
5x130mm bolt pattern

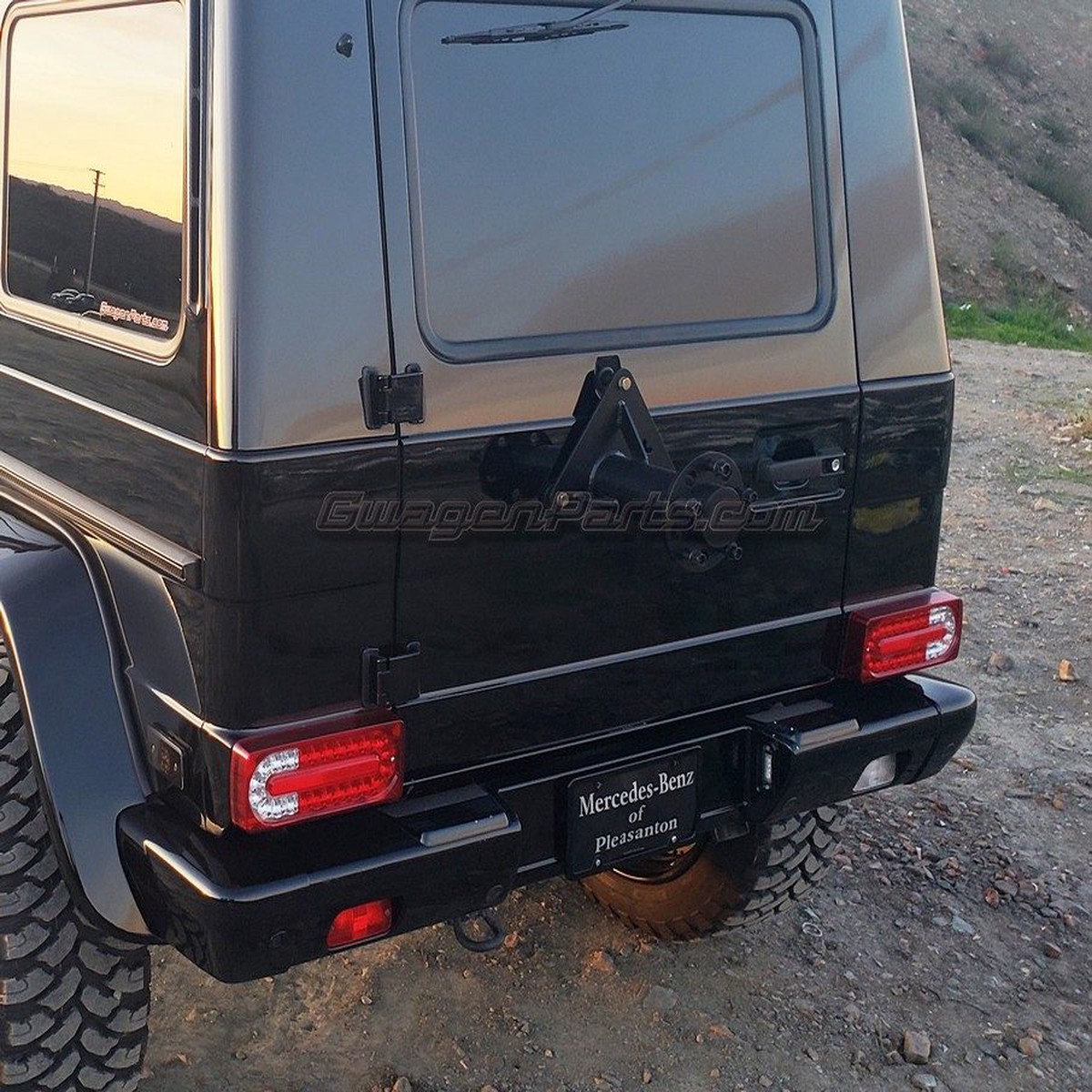

33 max tire size (black G shown here has 3512.5R20 tires). Larger tires might touch when the door is opened all the way.
Powder coated finish is durable and long lasting.
Laser cut 3/16 steel base plate and 3/8 wheel flange with precision welded nuts.
The center tube is high strength DOM steel and is hubcentric for easy installation.
Spacers (included):
Short spacers for wheels
18x 7.5 wide x 43mm offset 7.5Jx18 ET43
Long spacers for wheels
16-18x 7.5 wide x 63mm offset (euro models) 7.5Jx16 ET63, 7.5Jx18 ET63
18-22x 9.5 wide x 50mm offset 9.5Jx18 ET50 to 9.5Jx22 ET50
21x 10 wide x 45mm offset 10Jx21 ET45
