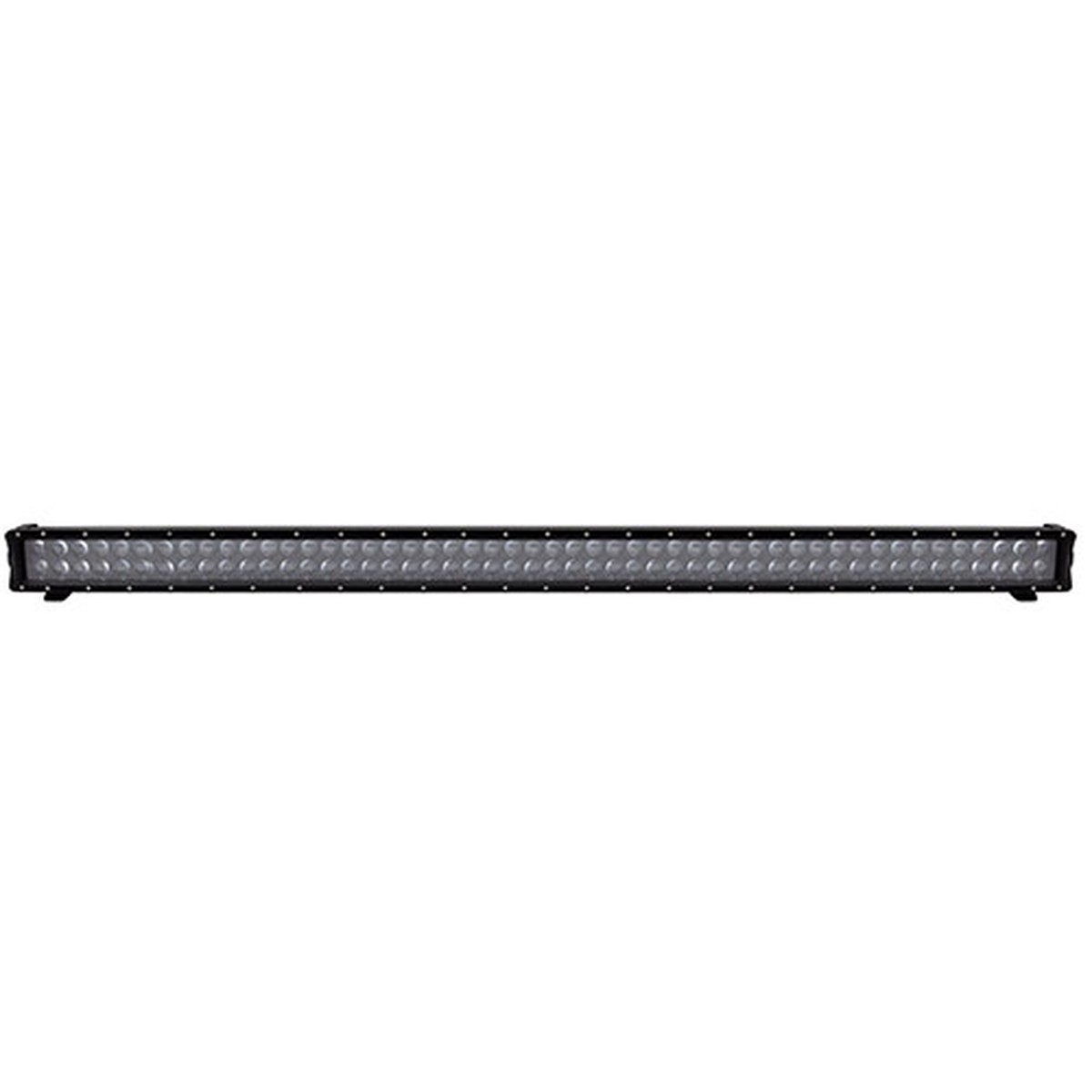

Heise LED Lighting Systems, by Metra Electronics, are exclusively engineered and manufactured to meet all international standards. Metras history, experience and approach to engineering and manufacturing ensure that their products stand out among the competitors and are the highest quality lights available on the market.The Heise Curved Dual Row LED Lightbar integrates advanced thermal management, short circuit and open circuit protection and many other innovative features. All products undergo rigorous testing during the development and manufacturing process and again before leaving the factory.
CREE XB-D SERIES LEDs:
Smallest lighting-class LEDs are built on Crees SC
3
Technology Platform, the XB-D White LED delivers up to 139 lumens and 136 lumens per watt in cool white (6000 K) or up to 107 lumens and 105 lumens per watt in warm white (3000 K), both at 350 mA and 85C.
For ease of installation a Harness kit is recommended, it comes with the following:
Plug and Play Harness with On/off rocker switch
12v DC Relay
Waterproof Fuse Holder
SPECS
Input Voltage: 10-30V DC
Power Consumption:
22-120W (40-3W CREE LEDs)
30- 180W (60-3W CREE LEDs)
42- 240W (80-3W CREE LEDs)
50- 288W (96-3W CREE LEDs)
54- 300W (100-3W CREE LEDs)
Raw Lumens:
22- 9600
30- 14400
42- 19200
50- 23040
54- 24960
LUX @ 10M:
22- 480
30- 625
42- 780
50- 915
54- 1050
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90)/Spot(8)
CONSTRUCTION
Housing Material: Die-cast Aluminum Housing
Housing Color: Black
Lens Material: PC
Mounting Bracket: Die-cast Aluminum
Height of Light Bar Itself: 3
Depth of Light Bar Itself: 3.50
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316
OPERATION
Operating Temperature: -40C to +60C
IP Rating: IP67
Protections: Reverse Polarity
