Feature:
Brand: Wanasign Auto
Status: In Stock
Condition: Brand New and High Quality Product.
Warranty It is backed by our warranty (1 years)
Fast shipping and good operation
Total new and high quality.
Please note your Vehicle Identification Number (VIN) when placing an order!
Application
Perfect for all 4/6 cylinder and 2.5L-6.0L engines
Capable of Boosting Horse Power up to 600HP
*Note:
1. Please confirm that there is enough space in your car to install this turbo before purchasing.
2. Lack of oil will cause the turbocharger shaftplay and damage, please adjust the oil pressure and ensure that the turbocharger is fully lubricated.

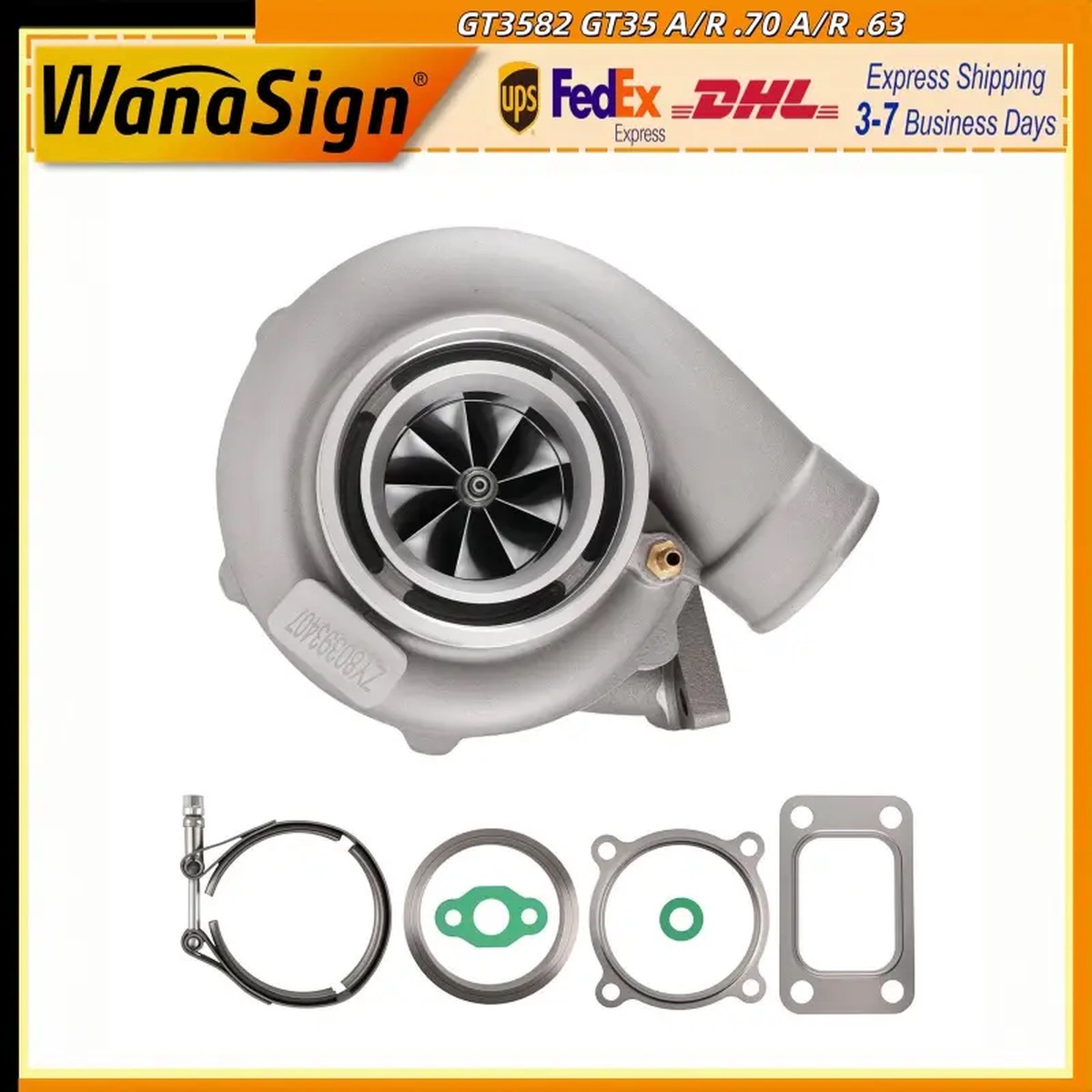

Product Specific
Turbine Side:
Exhaust Outlet Flange: V-Band
Turbine Trim: 84.2
Turbine A/R: 0.63
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Compressor Side:
Compressor Trim: 56.9
Compressor A/R: 0.7
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)
Bearing Type: Floating/Journal Bearing
Thrust bearing: 270 degree
Cooling Type: Water + Oil Cooling
Turbo Type: Individual
Wastegate: W/O Wastegate
Oil Feed/Inlet: M10*7/16-24
Oil Drian/Outlet: M14.1 & 2*M8*1.25
Water Inlet/Outlet: M14* 1.5
Maximum PSI: 22
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Pakage Size: 26 x 25 x 23 cm
Pakage Weight: 8350g
Package Included:
1x Turbocharger
2x Flange gaskets
2x Oil feed/drain gaskets
1x V-Band flange adapter ring & Clamp
1x Manual
1x Brochure
1x Sticker
(As The Picture Shows)
Why Buy From Us
OE Quality C Meets or exceeds original equipment specifications.
Direct Replacement C Easy installation with no modifications needed.
1-Year Warranty C Full peace of mind with a one-year warranty.
90-Day Free Return C Risk-free returns within 90 days.
Fast Shipping C FEDEX / Maersk Liftgate Truck Service will be delivered to you more safely
Notes:
Please refer to the listing pictures for an accurate description of the parts included in the kit.
Please ensure this item will fit your vehicle by checking the photos or the part number.
Instruction is not included. Professional installation is recommended.
If you have any questions, feel free to contact us, and we will reply you as soon as possible.
