Product Information

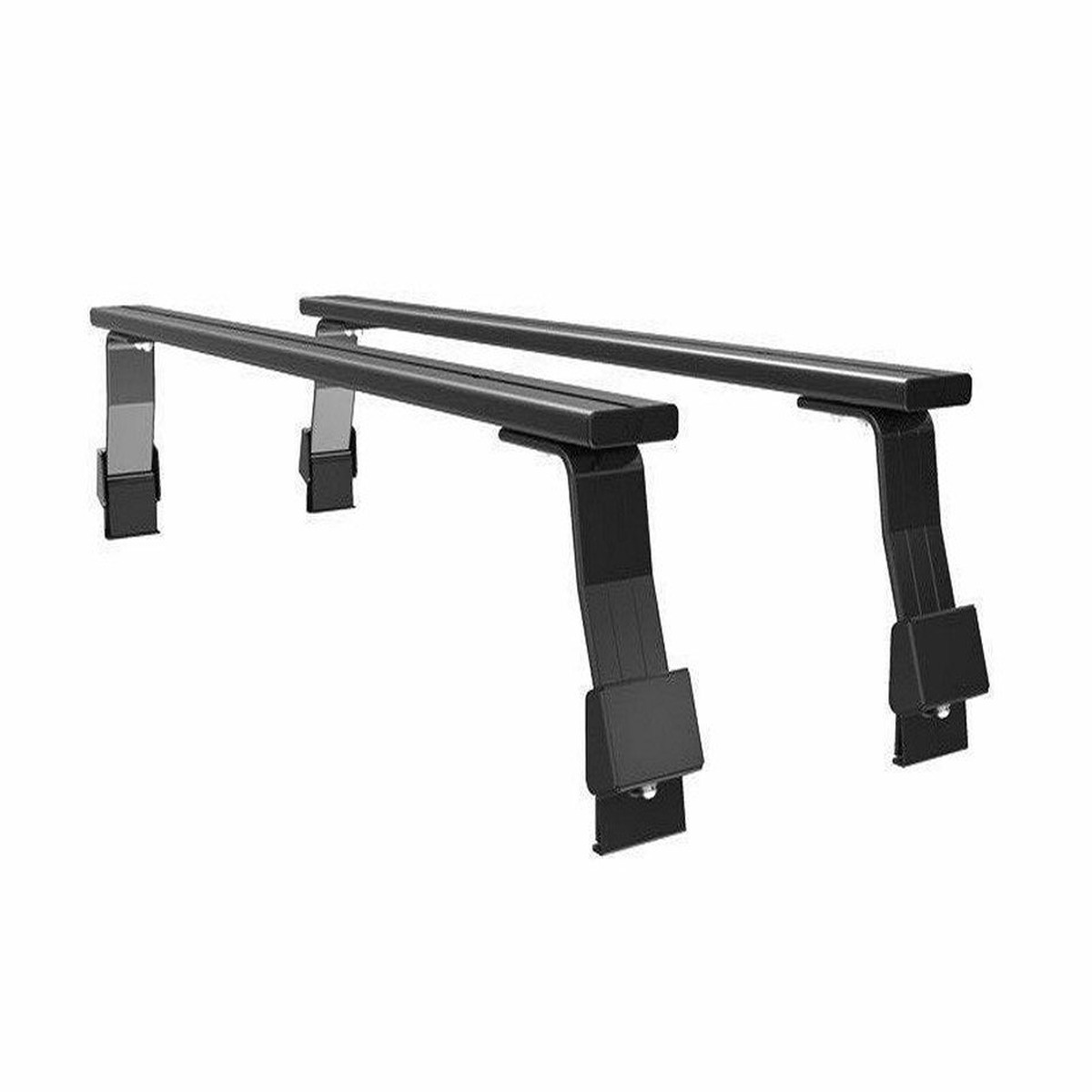

A set of Gutter Mounted Load Bars used to transport gear on the roof of your vehicle when theres no need for a full Front Runner Roof Rack. This low profile, smaller footprint solution includes 4 170mm Gutter Mount legs, 2 1475mm Load Bars, 1 10mm Roof Load Bar Wind Deflector and fitting instructions all the components necessary to mount the Front Runner Load Bars to a vehicle with gutters.
You may not have the need for a full roof rack and find that you can get by using a set of Front Runner load bars.
Can be used to mount a Front Runner Roof Top Tent or other accessories where a low profile and smaller footprint is preferred.
The Load Bars are mounted directly to the rain gutters using Gutter Mounted Legs.
Uses the same strong, corrosion free aluminum slats found in Front Runner Slimline II Racks.
The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.
The Load Bars and Gutter Mount Legs can be used in the future as components to build a complete Front Runner Roof Rack.
Made from stainless steel and a durable, weather resistant black powder-coated aluminum.
Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.
Specifications:
Consisting of:
2 x LASS104 No 4 Leg 170mm (Pair) by Front Runner
1 x LBSK017 Roof Load Bar Pair 1475mm(W) by Front Runner
1 x WDLB001 Load Bar Wind Deflector / 10mm by Front Runner
Material used:
Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel
Approximate Installed Weight 8kg (17lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicles roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8) to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8) to the height of the Legs listed above to determine the height of the rack from your vehicles rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8) to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width 120mm (5)
Length 1580mm (62)
Height 175mm (7)
Shipping Weight:
Weight 8.9kg (19.6lbs)
Installations
Installation Instructions for LASS104 (EN)
Q&A
What is the load rating of the Mercedes Gelandewagen (1979-2017) Load Bar Kit / Gutter Mount (KRGW007)?

The Mercedes Gelandewagen (1979-2017) Load Bar Kit / Gutter Mount (KRGW007) can take up to 100kg (220lbs) evenly dispersed over 2 load bars.
We recommend referring to the vehicle manufactures guide as to what would be a safe load rating for your particular vehicle
.
