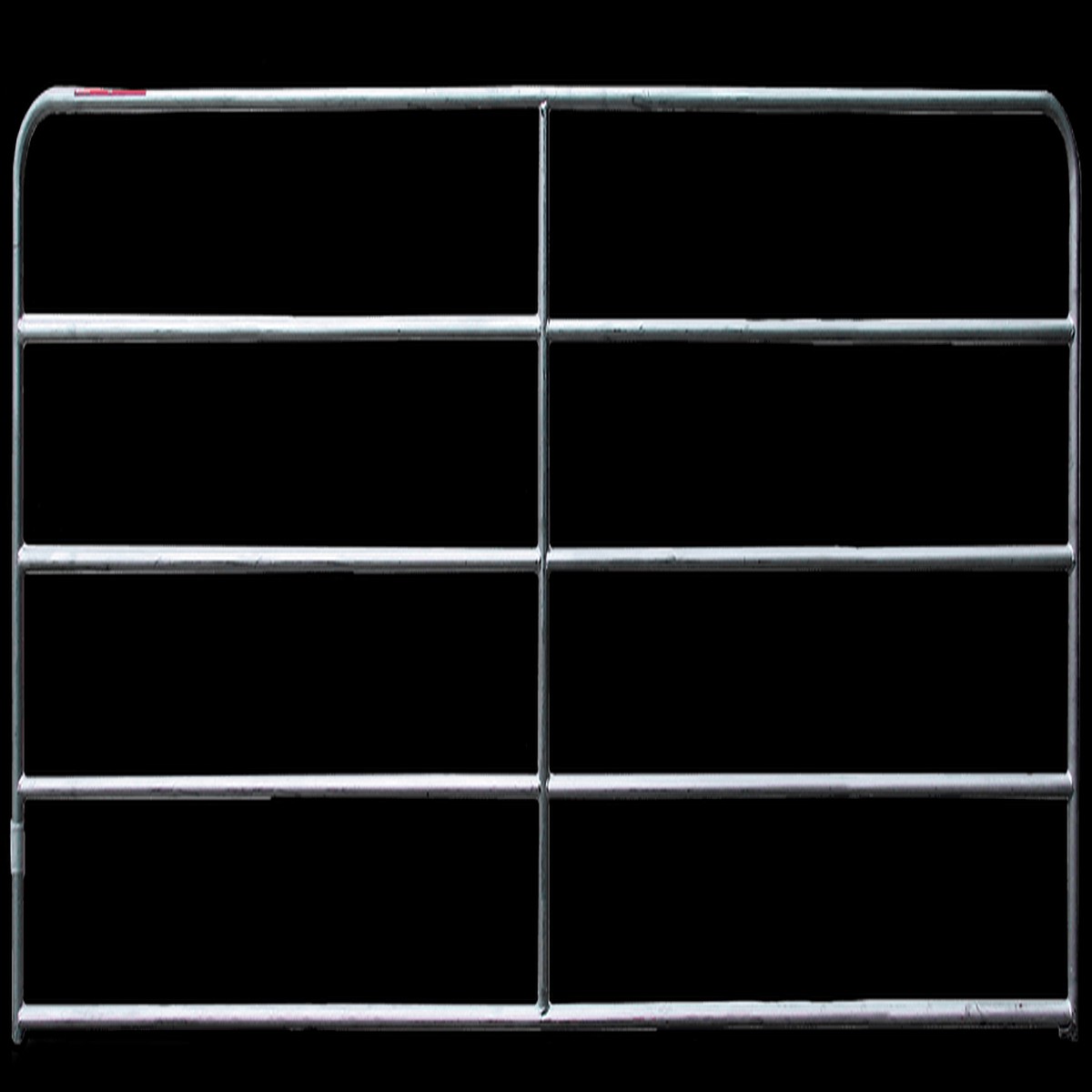

AWP 5 Bar Farm Gates – Hot Dip Galvanised Steel Gates for Cattle and High Pressure Livestock Use

The AWP 5 Bar Farm Gate range is manufactured from 25Nb hot dip galvanised tube with a 2.0mm wall thickness, built to handle cattle and high-pressure livestock situations. All gates stand 1170mm high and are available in a wide range of widths from 1000mm (3’3″) through to 4770mm (16′) to suit different opening sizes across the property. Wider gates from 8 feet and above include one or two diagonal braces depending on width, helping to maintain structural rigidity over longer spans. A heavy duty 32Nb version is also available in 10, 12, and 14 foot widths for applications requiring a stronger, heavier gate.

Hot dip galvanising provides long-lasting corrosion resistance in outdoor and paddock conditions, making these gates a practical choice for Australian farming environments. The 2.0mm wall thickness gives the standard range a solid feel without being overly heavy, and the heavier 32Nb models offer added strength where gate size or livestock pressure demands it. Whether you are fitting a small yard gate or a wide machinery access point, there is a size in this range to suit. A dependable and well-made farm gate range for cattle producers and rural property owners.

Standard 5 Bar Gate Sizes (25Nb, 2.0mm wall)

• 1000mm (3’3″) – 11kg – No brace
• 1160mm (4′) – 12kg – No brace
• 1770mm (6′) – 18.2kg – No brace
• 2370mm (8′) – 22.6kg – 1 brace
• 2970mm (10′) – 27.0kg – 1 brace
• 3570mm (12′) – 31.4kg – 1 brace
• 4170mm (14′) – 37.5kg – 2 braces
• 4770mm (16′) – 44.0kg – 2 braces

Heavy Duty 5 Bar Gate Sizes (32Nb)

• 2970mm (10′) – 46.1kg – 1 brace
• 3570mm (12′) – 53.8kg – 1 brace
• 4170mm (14′) – 64.4kg – 2 braces

Features

• Manufactured from high-quality 25Nb (standard) or 32Nb (heavy duty) hot dip galvanised tube
• 2.0mm wall thickness for solid, long-lasting construction
• 1170mm height across all sizes in the range
• Diagonal bracing included on wider gates for structural rigidity
• Suited to cattle and high-pressure livestock situations
• Hot dip galvanised finish for corrosion resistance in outdoor conditions
• Available from 1000mm to 4770mm wide in standard, and 2970mm to 4170mm in heavy duty

A corrosion-resistant farm gate range for cattle producers and rural property owners who need a reliable, size-flexible gate solution for yards, paddocks, and machinery access points.
