Feature:
-100% brand new and high quality guaranteed.
-Easy to use and to operate at affordable prices.
-Perfect cover that is useful, helpful and so practical.
-Made of top-grade material.
-High quality at a budget-friendly price.
-Professional installation is highly recommended.
-As Manufacturer,We Have Sold Millions Parts,100% Fit Your Vehicle.
Fitments:
Fit For LS1 V-8 5.7L 1997-2004;
Fit For LS2 V-8 6.0L 2005-2009;
Fit For LS7 V-8 7.0L 2006-2013;
Fit For LS6 V-8 5.7L 2001-2005;
Fit For LS3 V-8 (without AFM) 6.2L 2008-2013;
Fit For Trucks/SUVs V-8 VIN-V,C,A 4.8L 1999-2012;
Fit For Trucks/SUVs 5.3L V-8 VIN-T,Z,B 1999-2007;
OE Part Number
12499225,HL124,E1840P,12482063,12499224,12586484,PR614S Camshaft RPM Range: 2200 to 5400 RPM Camshaft Intake Valve Lift: .585 Camshaft Exhaust Valve Lift: .585 Camshaft Advertised Intake Duration: 283 Camshaft Advertised Exhaust Duration: 286 Camshaft Intake Duration at .050: 228 Camshaft Exhaust Duration at .050: 230 Camshaft Lobe Separation: 112 Camshaft Intake Centerline: 108
Outside Diameter of Outer Spring (in): 1.290 in. Spring Coil Bind Height (in): 1.140 in. Damper Spring Included: No Spring Install Load: 130lbs Spring Install Height: 1.800 Spring Open Height: 1.175 Spring Open Load: 318 lbs Spring Rate (lbs/in): 313 lbs./in. Inside Diameter of Outer Spring (in): 0.885 in. Valve Spring Style: Beehive Not For AFM/DOD
Package Included:
16* Valve Lifters-HL-2148;
16* Spring;
1* Camshaft- E-1840-P, E1840P;
1* Oil pump-12696357, 12586665;
1* Intake Seal Set;
1* Valve Seal Set;
1* Timing Cover Gasket Set-TCS45993;
1* Valley Cover Gasket;
1* Oil Pan Gasket;
1* Exhaust Head Gasket Set;
1* Rear Main Seal;
1* Rear Main Cover Gasket;
2* Multilayer Steel Cylinder Head Gaskets;
1*Harmonic Balancer Bolt;
30* Cylinder Head Bolts;
16* Push rodPR-15740S;

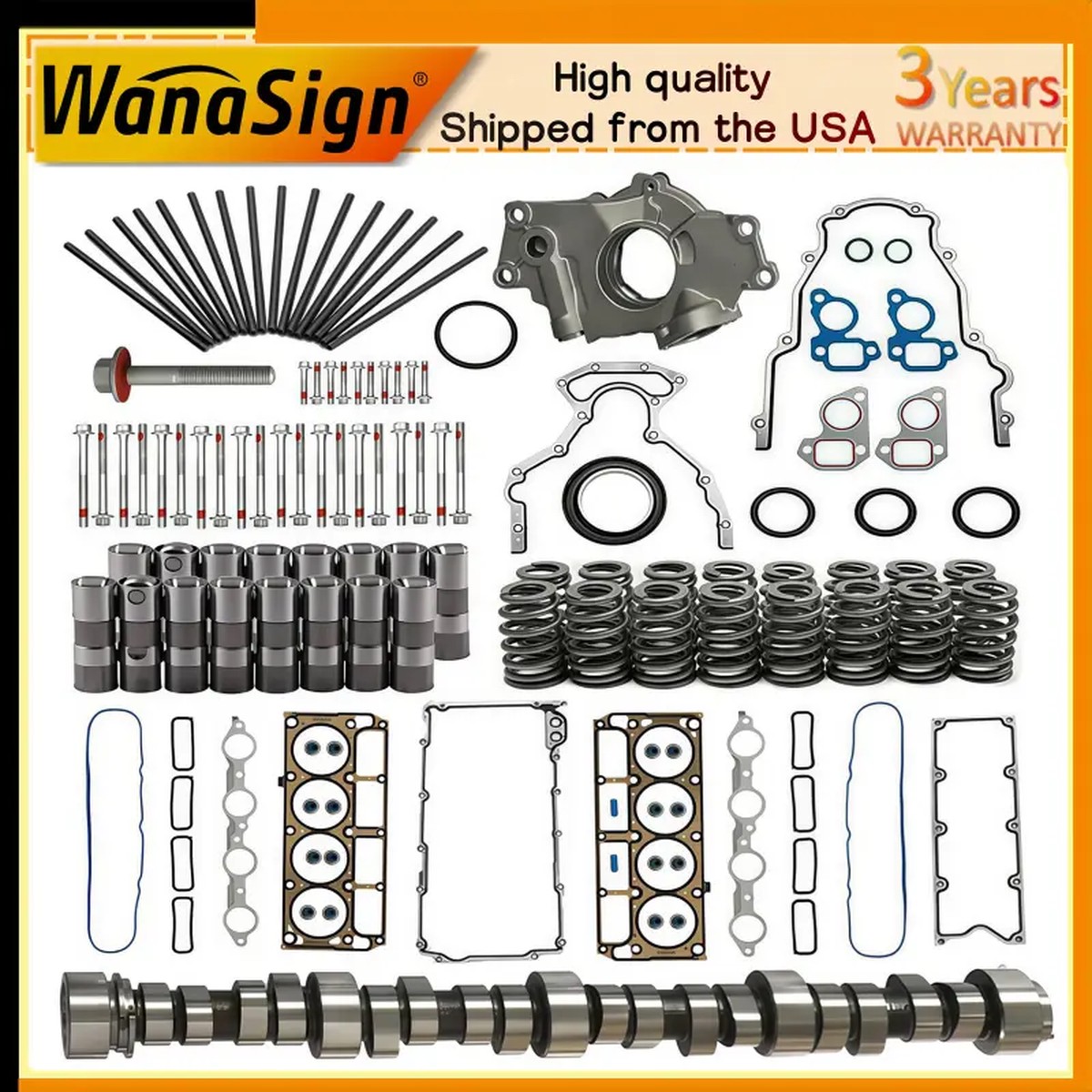

(As The Main Picture Shows)
Notes:
Please refer to the listing pictures for an accurate description of the parts included in the kit.
Please ensure this item will fit your vehicle by checking the photos or the part number.
Instruction is not included. Professional installation is recommended.
If you have any questions, feel free to contact us, and we will reply you as soon as possible.
