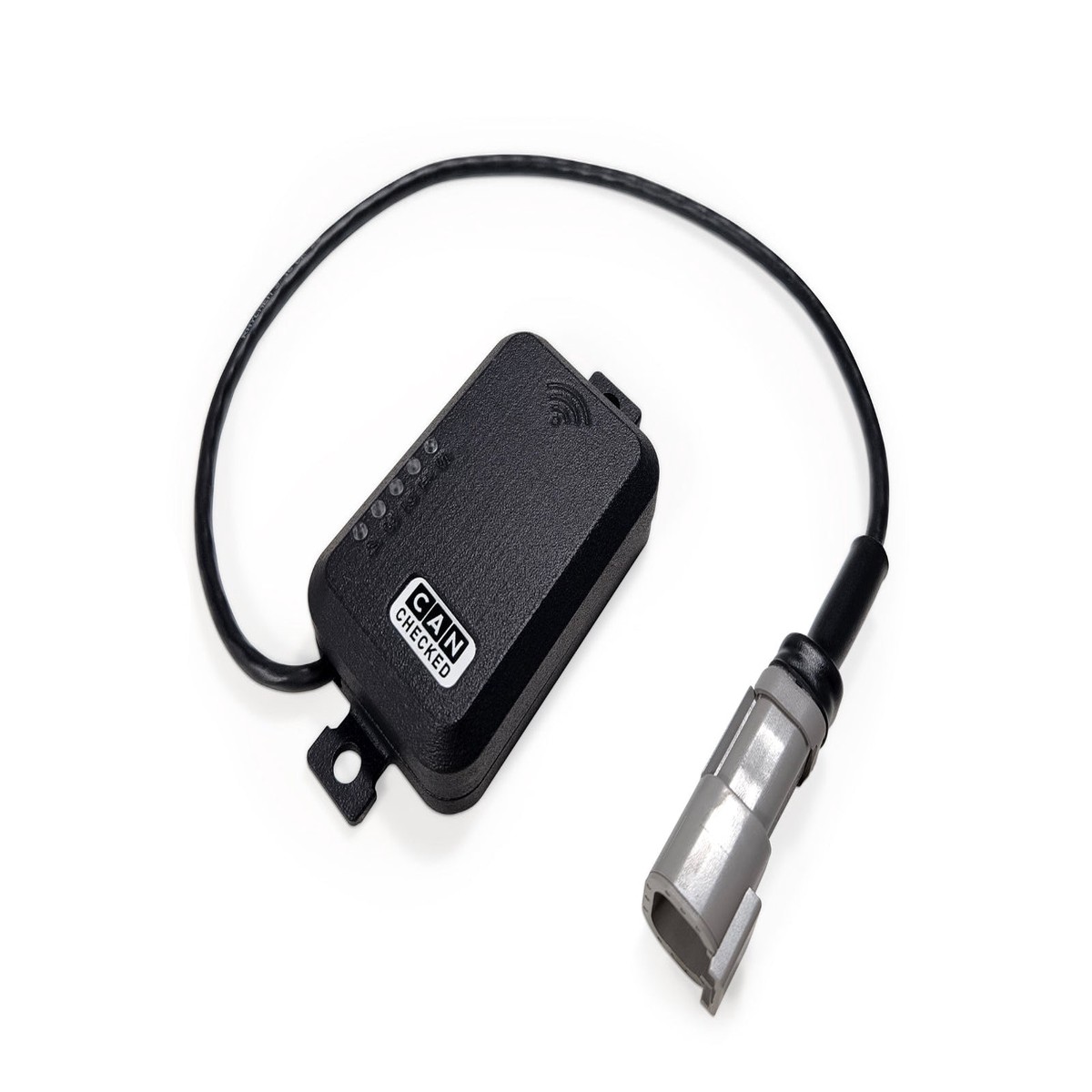

The CANchecked TMR01 Wireless Tire Temperature Monitoring Receiver is a replacement WiFi-enabled receiver component designed to work with the TMU01 infrared tire temperature sensors to display data into a compatible CANchecked display or monitoring setup.

It is well suited for projects that require wireless connectivity with the advanced wireless multi-channel infrared sensors.

This is a single replacement WiFi receiver for the full TMU04 kit which provides real-time, high-precision data for optimized temperature management at the track.

Product Details

• Replacement WiFi receiver box for use with the TMU01 wireless tire temperature monitoring sensors
• Supply Voltage: 5-20V
• Current Consumption: 50mA
• Cable: 0.5m AWG22
• Connector: DTM04-4P
• CAN Standard: 2.0A (11-bit ID) or 2.0B
• Bit Rate: 500Kbps (Standard) / 1Mbps
• Byte Order: Big Endian (MSB first)
• CAN Termination: none
• Base CAN-ID: Standard 0x310 (Tire) / 0x210 (Brake), configurable via CAN
• Temperature Conversion: -200C offset, 0.1C / bit
