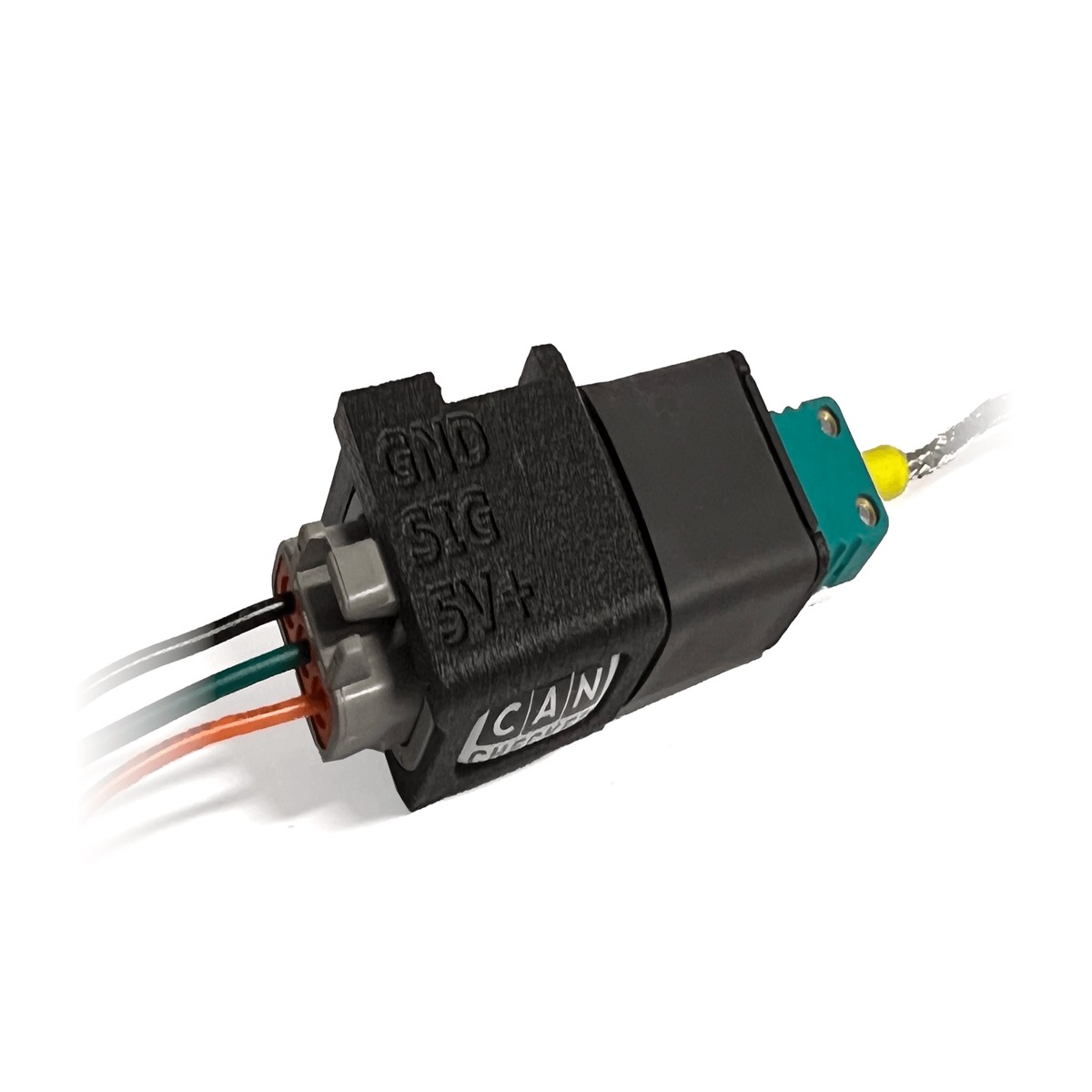

The CANchecked TCC01 Thermocouple Converter with DTM 3-way is a compact thermocouple amplifier that converts the signal from a Type-K thermocouple temperature probe into a clean 05 V analog output, making exhaust gas temperature and other thermal measurements accessible to any ECU or data display with a standard analog input. It is CANchecked’s entry-level thermocouple amplifier and the ideal choice for single-channel temperature monitoring applications.

Insert a Type-K probe into the standard mini thermocouple connector on one side; the other side outputs a calibrated 05 V signal via a DTM06-3S connector, providing 5V supply, ground, and signal to the receiving device. The internal cold junction compensation ensures accurate readings across the full linear range of 01250C, with a very fine resolution of 4 mV per C and a maximum accuracy of 2% deviation. Power consumption is just 180 A. The calibration is 0 V = 0C (32F) and 5 V = 1250C (2282F).

CANchecked displays are pre-configured to receive the TCC01 signal simply connect to AIN2. The mounting tab allows attachment with an M6 screw or cable tie, and multiple TCC01 modules can be stacked side by side for twin-scroll or multi-cylinder EGT applications. The TCC01 supports Type-K elements in 0.5, 1, 3, and 5 mm diameters, and is equally suited to measuring temperatures of gases, liquids, and other media.

For applications requiring multiple Type-K channels via CAN bus, the TCC04, TCC06, TCC08, and TCC10 provide multi-channel CAN bus output.

Key Features

• Type: Thermocouple amplifier for Type-K temperature input only
• Output: 05 V analog signal via DTM06-3S connector
• Temperature Range: Linear 01250C measurement range
• Calibration: 0 V = 0C (32F); 5 V = 1250C (2282F)
• Resolution: 4 mV per C
• Accuracy: Maximum 2% deviation
• Power Consumption: Only 180 A
• Thermocouple Compatibility: Standard mini connectors; supports 0.5, 1, 3, and 5 mm Type-K elements
• Mounting: Tab for M6 screw or cable tie; modules can be stacked side by side
• Display Integration: Pre-configured on CANchecked displays; connect signal to AIN2
• ECU Compatibility: Any 05 V analog input AEM, Ecumaster, Emtron, DTAfast, Haltech, LinkECU, KMS van Kronenburg, MaxxECU, MBE, Megasquirt, Motec, Syvecs, VEMS, and more

What’s Included

• TCC01 thermocouple amplifier in enclosure
• DTM connector with latch
• 3 pins for self-crimping
• 3 pre-crimped connection cables

The CANchecked TCC01 Thermocouple Converter delivers a clean, modular Type-K temperature measurement solution compatible with virtually any analog-input ECU or CANchecked display, backed by CANchecked’s engineering quality.
