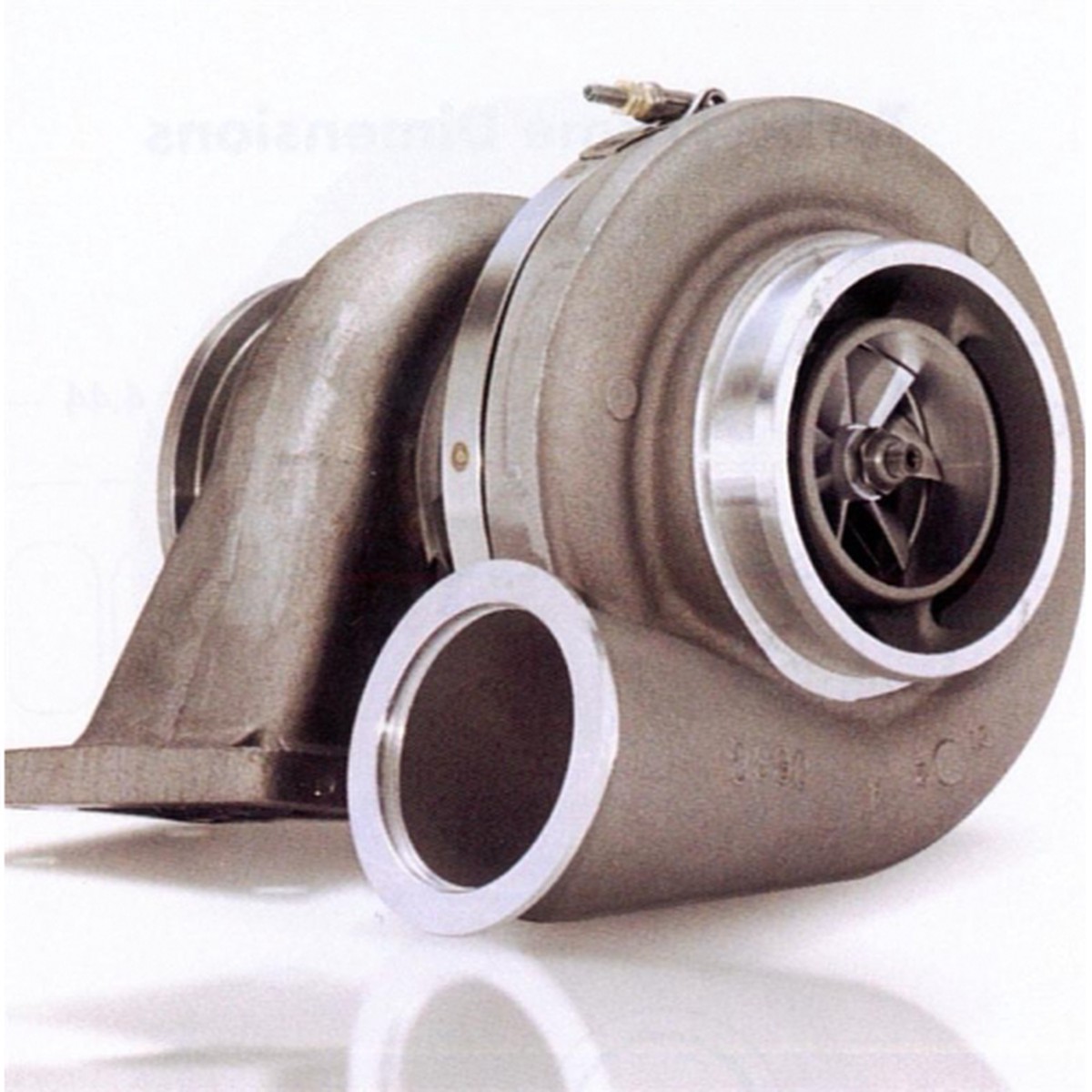

BorgWarner Airwerks 171702 S400SX4-75, S475, S400-75 with T6 1.32 A/R Twin Scroll Turbine Housing.
Rated at 500 to 1050 HP
High-flow S400 model, with compressor flow over 105 lb/min.
Wheel Dimensions:
Compressor: 74.7 mm inducer, 100.8mm exducer, with Extended Tip Technology.
Turbine: 95.5 inducer, 87.9mm exducer.
Housings:
Compressor: .63, with 5.0″ hose-type inlet, and v-band-type discharge.
Turbine: T6 1.32 A/R, with twin volute, T6 turbine inlet flange, and quick-release v-band discharge flange. Cast in ductile iron.
This Is a direct replacemnt unit for a Detroit Diesel Series 60
