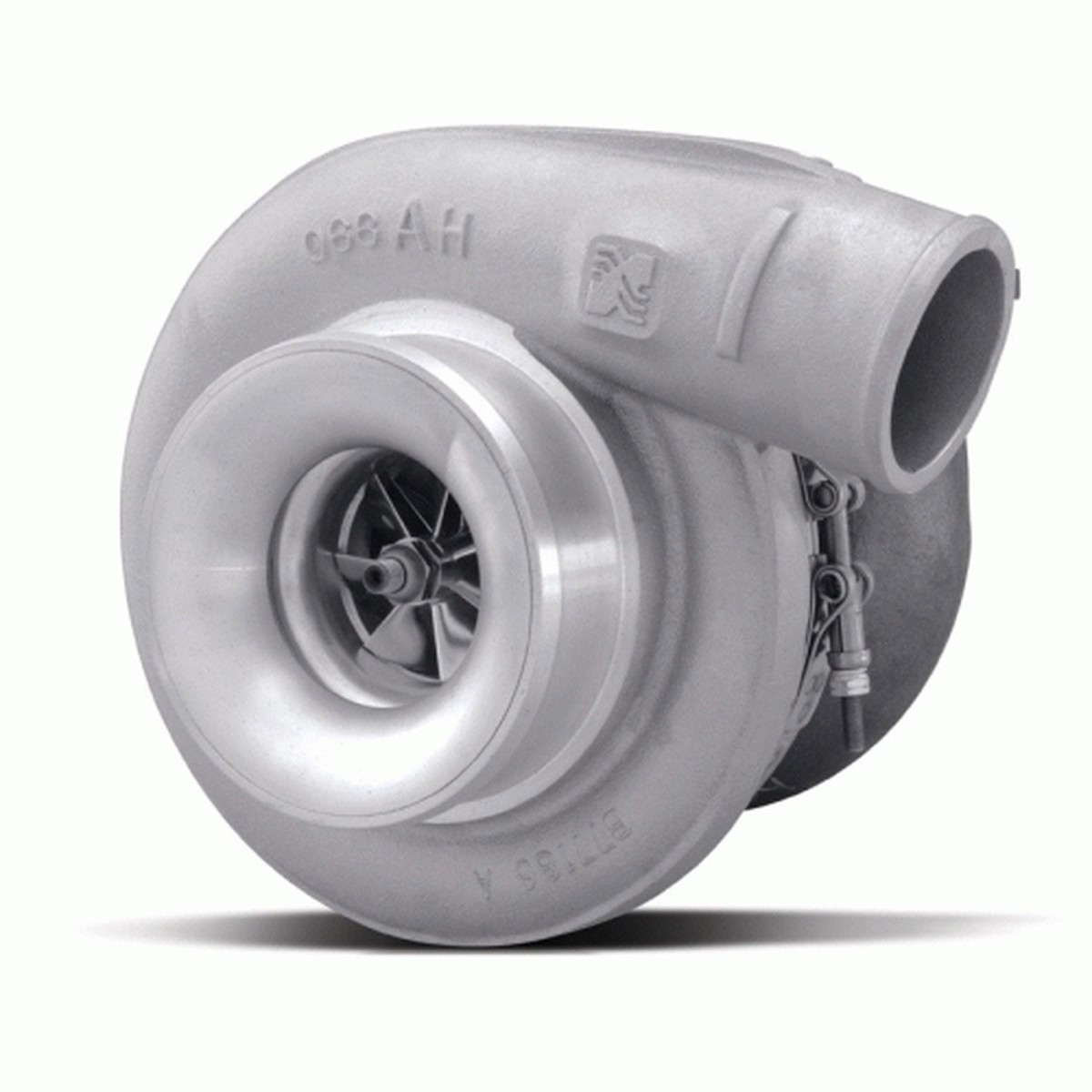

BorgWarner Airwerks S400SX3-67.7, S467 FMW (Forged Milled Wheel), with Scroll Turbine Housing.
Rated at 500 to 950 HP
High-flow S400 model, with compressor flow over 95 lb/min.
Wheel Dimensions:
Compressor:
FMW
67.7 mm inducer, 91mm exducer, with exclusive Extended Tip Technology.
Turbine:
83.5 inducer, 74mm exducer. Cast in Inconel 713 for high-temperature operation.
Housings:
Compressor:
RACE COVER
.66, with 5.5 hose-type inlet, and 3 Hose discharge.
Turbine:
T4
1.10, 1.0, .90 A/R, with divided volute, featuring T04-style turbine inlet flange (3.25×2.75), and quick-release v-band discharge flange. Cast in ductile iron.
